| Hardware Parameter | |

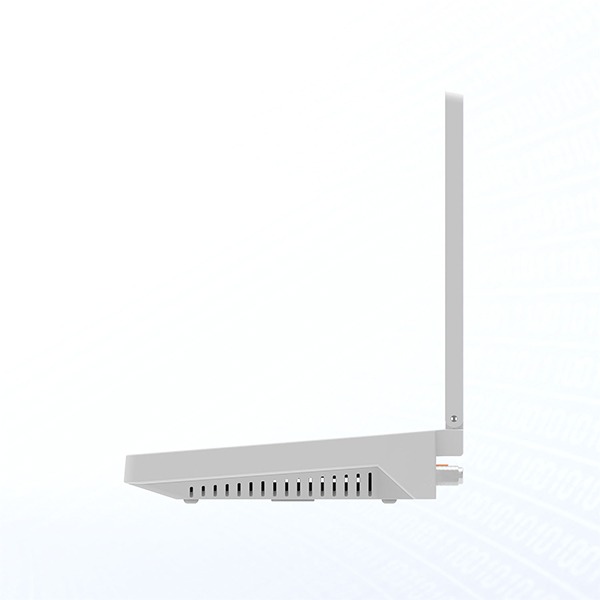

| Dimension | 200mm×156.8mm×32.33mm(L×W×H) |
| Net Weight | 0.35kg |
| Operating Condition | Operating temp: -10 ~ +55°C
Operating humidity: 5 ~ 95% (non-condensed) |
| Storing Condition | Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed) |
| Power Adapter | 12V/1A, External AC-DC power adapter |
| Power Supply | ≤12W |

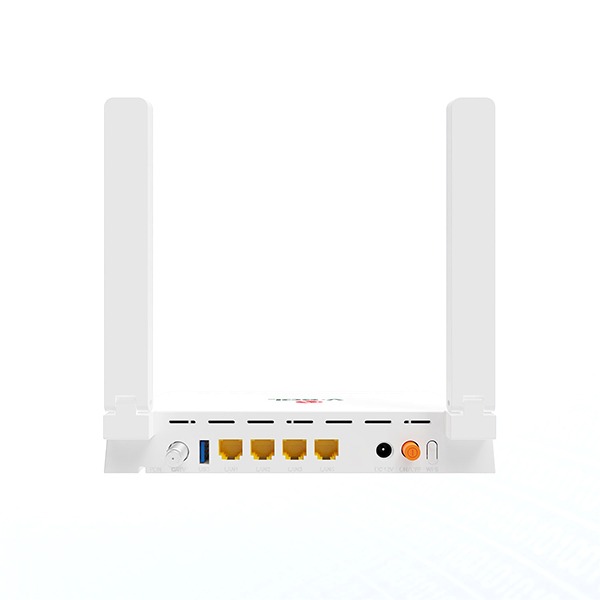

| Interface | 1XPON + 4GE + 1USB 3.0 + Wi–Fi 6, CATV optional |
| Indicators | PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV(optional) |
| Interface Parameter | |
| PON Interface | 1XPON port (EPON PX20+ and GPON Class B+)
SC single mode: V2804AX30T-H:SC/APC connector V2804AX30-H:SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
| User Interface | 4×GE, Auto-negotiation, RJ45 ports |
| Antenna | 2.4GHz/5GHz 2T2R, external antennas |
| CATV interface | Optical receiving wavelength: 1550±10nm
Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input) |
| Function Data | |
| O&M | WEB/TELNET/OAM/OMCI/TR069
Support private OAM/OMCI protocol |
| Internet Connection | Support Routing Mode |
| Multicast | IGMP v1/v2/v3, IGMP snooping
MLD v1/v2 snooping |
| Wi-Fi | Wi–Fi 6: 802.11a/n/ac/ax 5GHz, 2.4GHz
Wi–Fi: 2.4GHz\5GHz 2×2, 2 dual band antennas, rate up to 3Gbps, Multiple SSID Wi–Fi Encryption: WEP-64/WEP-128/WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support Wi–Fi Easy-mesh function |
| L2 | 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
