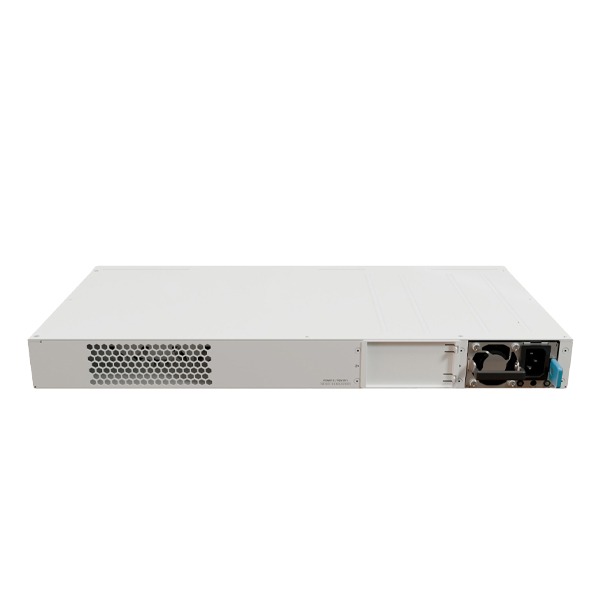

The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
1 Year Warranty
489.00 $
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Details | |
|---|---|
| Product code | CRS320-8P-8B-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 600W (1150W with additional PSU) |
| Max power consumption without attachments | 36 W |
| Cooling type | 3 fans |
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| PoE out | 802.3af/at/bt |
| Max out per port output (input 30-57 V) | 560 (af/at) / 1667 (bt) mA |
| Max total out (A) | 17.82 A |
| Total output current | 17.82 |
| Total output power | 963 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 17 |
| Number of 1G Ethernet ports with PoE-out | 16 |
| Details | |
|---|---|
| SFP+ ports | 4 |
| Details | |
|---|---|
| Serial console port | RJ45 |
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
